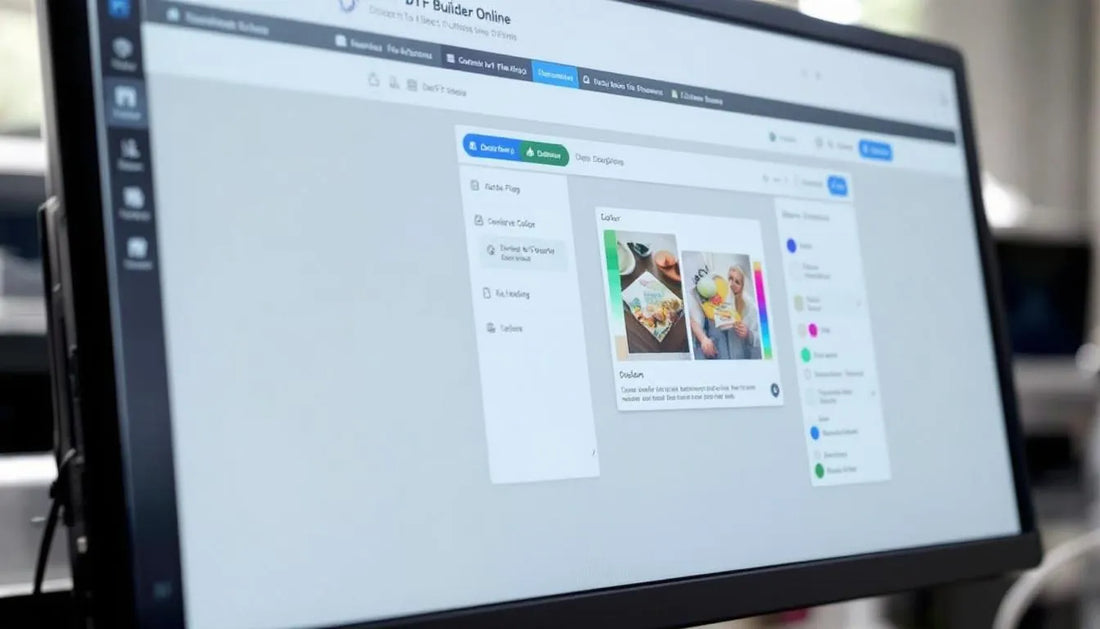

DTF Builder Online: Create, Arrange, and Order in Minutes

Why an Online DTF Builder Boosts Speed, Accuracy, and Profit

The fastest way to turn many designs into one efficient print run is a purpose-built DTF Builder Online. Instead of juggling artboards and manual nesting, you drag, snap, and preview in your browser—no guesswork, no last-minute resizing. A good builder enforces bleed and gutter rules, flags low-resolution art, and locks your canvas to shop-standard sizes (e.g., 22″×24″ or 22″×60″). That means fewer failed uploads, fewer reprints, and a predictable cost per transfer. If you want a battle-tested option, use the DTF Gang Sheet Online Builder. Already have a perfect, pre-nested file? Send it straight through DTF Gang Sheet Upload.

What the builder actually solves

• True-size layouts: Canvas is locked to the product you select, preventing “scale to fit” mishaps.
• Snap-to-grid precision: Consistent gutters stop powder bridging and make cutting faster.
• Automated checks: Low-res warnings, perimeter safe zones, and edge bleed previews.
• Instant yield insight: See how many logos and sizes fit before you order.

When to use the builder vs. direct upload

• Use the builder when you’re packing multiple designs, sizes, or SKUs and want guided spacing and preview.
• Use direct upload via Upload Gang Sheet when your file is already nested with the right gutters, bleed, and transparency.
• Use single transfers via DTF Transfers by Size for standardized placements (e.g., 11″ front, 3.5″ left chest).

Typical use cases

• Brand kits: Primary/secondary logos, sleeve badges, care labels on one sheet.
• Seasonal drops: Pack best-sellers with size variants to lower unit cost.
• Team packs: Names and numbers banded for fast trimming and kitting.

Step-by-Step: From Art Upload to Checkout (in Minutes)

Follow this workflow to get a print-ready gang sheet the first time. The specifics below mirror best practices in the DTF Gang Sheet Online Builder, but the principles apply broadly.

1) Prepare your artwork (saves hours later)

• Resolution: 300 ppi at final print size for raster art.
• Vectors: Outline fonts; expand strokes; flatten effects for predictable edges.
• Color: Work in sRGB; embed the ICC profile on export. Let the RIP handle white underbase.
• Transparency: No white artboard; export PNG/TIFF with transparency or PDF with outlined vectors.
• Minimums: Lines ≥0.5 pt (~0.18 mm); text ≥8–10 pt depending on garment color.

2) Choose your sheet size and safe zones

• Shop defaults: 22″×24″ (boutique batches) or 22″×60″ (production favorite).
• Perimeter buffer: Keep art ≥6 mm (0.25″) inside the edges to avoid press marks.
• Cut cadence: Turn on subtle cut bands every 3–4″ to speed trimming post-cure.

3) Arrange and snap (grid + gutters + bleed)

• Gutters: 2–4 mm between designs to prevent powder bridging and accidental fusing.
• Bleed: Add 1–2 mm only where shapes must print to their edge.
• Grid logic: Use 4–6 columns on 22″ width; mirror sleeve pairs to avoid orientation errors.
• Banding layout: Group fronts, backs, and sleeves in horizontal strips for assembly-line cutting.

4) Watch the builder’s warnings (fixes in seconds)

• Low resolution: Replace the asset with a 300 ppi version at size; don’t upscale in the builder.
• Objects too close: Increase gaps to at least 2 mm; the preview helps you spot tight spots.
• Edge violations: Drag elements inward to respect the 6 mm safe zone.

5) Optimize yield without hurting press speed

• Cluster smalls: Place 1–2.5″ icons together; keep 3–5″ “statement” marks in a separate band.
• Reserve lanes: Dedicate a lane for left-chest marks and another for sleeves to streamline kitting.
• Fill spare space: Add evergreen logos and size variants to build “ready to press” inventory.

6) Proof and lock it

• Zoom to 100%: Inspect micro text, thin strokes, and edges at actual size.
• Export proof board: Save a labeled JPEG/PDF for approvals and internal QC.

7) Checkout and production

Once your layout passes the builder’s checks, proceed to checkout. If you ever prefer to upload a pre-built file, switch to DTF Gang Sheet Upload—just ensure the canvas size is exact and the background remains transparent.

8) Pressing basics (hot-peel workflow)

• Media: For speed and consistent peels, use hot-peel film (also available as sheets) + premium powder.
• Baseline: 285–310°F (140–155°C), medium–firm pressure, 10–15 s initial press; peel hot; optional 5–8 s post-press through parchment/PTFE.
• Maintenance: Keep heads healthy with DTF Cleaning Solution; use strong cleaner for stubborn clogs.

Advanced builder moves (for power users)

• Template presets: Save 22×24 and 22×60 master grids with gutters and cut bands baked in.
• Mirrored pairs: Keep left/right sleeves adjacent; label them to reduce press-table confusion.
• Team packs: Band numbers (e.g., 8″ backs, 4″ sleeves) and names; keep baselines consistent for clean cuts.
• QR & micro labels: High contrast only; keep QR size ≥15–20 mm for phones on curved surfaces.

Common pitfalls (and quick fixes)

• “My art looks soft on zoom”: You uploaded a low-ppi raster. Replace with a 300 ppi file at size.
• “Halos after pressing”: Your gutters were tight or powder bridged. Keep 2–4 mm gaps; tap off excess powder thoroughly.
• “Carrier fights the peel”: Add pressure one notch, pause 2–3 s, peel low/flat; verify proper cure.
• “Banding during cutting”: Add faint 3–4″ cut bands and group similar sizes in strips.

Quality control that doesn’t slow you down

• Spot check: Inspect the leading edge of each batch for white coverage, micro text, and gradients.
• Fabric log: Record best temp/pressure/peel by garment type to standardize results.
• Wash probe: After 24 hours, run 3–5 inside-out cycles; review for cracking or color loss.

Your 30-minute quick start

1. Open the DTF Gang Sheet Online Builder and pick 22×60.
2. Upload 3–5 core designs at 300 ppi; set gutters to 3 mm; toggle cut bands every 3–4″.
3. Mirror sleeve pairs; group fronts/backs/sleeves in separate strips.
4. Run the builder’s checks; fix any low-res or edge warnings; export a proof board.
5. Checkout. Keep hot-peel film and premium powder on deck; press at the baseline settings above.

Final call to action

Build smarter, not harder. Use the DTF Gang Sheet Online Builder to arrange, snap, and preview bleed in minutes, or send your finished layout through DTF Gang Sheet Upload. For standardized placements, skip nesting with DTF Transfers by Size. Pair your layouts with hot-peel film and premium powder, keep printers clean with DTF Cleaning Solution, and convert every square inch into profit—predictably and fast.
