DTF Gang Sheet Templates: How to Layout, Bleed, and Save for Perfect Transfers

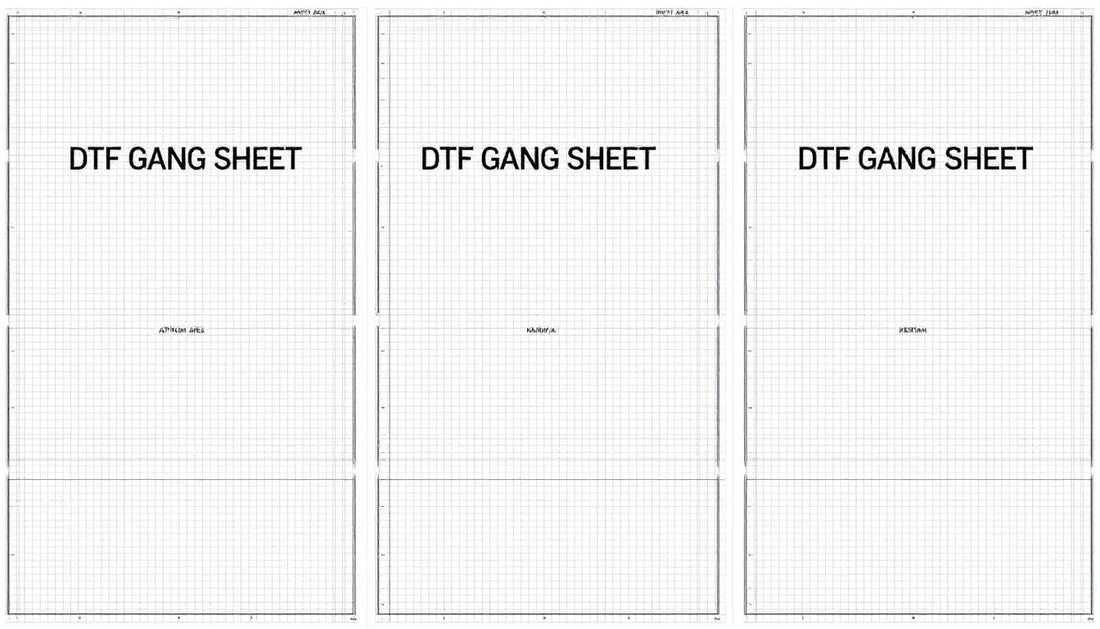

The Anatomy of a Perfect DTF Gang Sheet Template

A great DTF gang sheet template does three things at once: it standardizes your canvas (so every job starts right), it enforces spacing rules (so powdering, curing, and peeling behave consistently), and it bakes in export settings (so files import into your RIP at true size, with predictable color and coverage). Below you’ll find battle-tested dimensions, grids, and file-prep rules you can copy into your workflow today—and links to tools that help you lay out and order quickly, like the DTF Gang Sheet Online Builder and DTF Gang Sheet Upload.

Standard canvas sizes & artboard presets (2025 shop defaults)

• 22" × 24" (559 × 610 mm): Ideal for boutique jobs, small batches, and multi-size logo sets.
• 22" × 60" (559 × 1524 mm): Production favorite for mixed SKUs and wholesale runs.
• Full-roll widths: Keep width 22"; set length to order (e.g., 10–100"). Helpful when you graduate to roll workflows.
• Safety margin: Add a 0.25" (6 mm) safe zone around the entire artboard to avoid edge contamination.

If you prefer a no-hassle start, use the web-based DTF Gang Sheet Online Builder to spin up the correct sheet size with snapping and bleed previews.

Grid system: columns, gutters, and snap points

• Columns: 4–6 columns for 22" width sheets keeps small logos tidy without wasting space.
• Gutters: 0.08–0.16" (2–4 mm) between pieces minimizes accidental fusing after powdering.
• Snap lines: Add horizontal guides every 3–4 inches to line up sleeves, left-chest, and back graphics.

Bleed, padding, and spacing: exact numbers that work

• Bleed: 0.04–0.08" (1–2 mm) for full-coverage shapes or backgrounds that must print to the edge.
• Interior padding: Leave 0.08–0.16" (2–4 mm) around each design to prevent powder bridging.
• Edge buffer: Keep all art at least 0.25" (6 mm) from the sheet perimeter.

Resolution, color mode, and transparency

• Raster art: 300 ppi at final size (no scaling in the RIP).
• Vectors: Outline fonts; expand strokes; flatten appearances.
• Color mode: Work in RGB (sRGB IEC61966-2.1); keep backgrounds transparent.
• Underbase: Let your RIP handle white underbase; avoid manual white layers unless your workflow requires it.

Typography & fine detail minimums (avoid dropout)

• Smallest text: 8 pt bold (10 pt safer) for light garments; 9–10 pt for darks.
• Line weight: ≥0.5 pt (0.18 mm) for consistent powder adhesion and transfer integrity.
• Knockouts: Avoid ultra-thin reverse text inside solid areas; add a subtle keyline if needed.

File naming & layer conventions (reorder-friendly)

• Names: CLIENT_SKU_Color_Size_Version.ext (e.g., ACME-LG01_Black_M_v3.png).
• Layering: Keep each design grouped; use artboard or rectangle bounds as a visual “slot.”
• Version control: Increment versions only when dimensions/colors change.

Template A (22×24): boutique multi-size sets

Top row for full-fronts (10–12" wide), middle rows for 6–8" backs, bottom rows for left-chest and sleeves. Maintain 2–4 mm gutters and mirror sleeve graphics left/right to reduce press rotation.

Template B (22×60): production mixed SKUs

Divide into three horizontal bands: front/back (top), secondary graphics (middle), badges & care (bottom). Use repeated 4" vertical modules so you can cut consistently after curing.

Template C: team packs (roster numbers + names)

Group numbers by size (e.g., 8" back, 4" sleeve) and names in a monospaced grid. Keep consistent baselines and add 2 mm bleed. Include a small printed cut guide at the gutter centerline for fast trimming.

Template D: mixed apparel & accessories

Reserve one column for hat/bag marks (2–3.5"), two columns for left-chest (3–4.5"), and a wide column for full-fronts. This “1+2+1” layout maximizes yield while keeping cut paths simple.

Manual nesting vs. auto-packing (and when to use each)

• Manual: Best for brand kits and strict alignment rules; ultimate control.
• Auto: Great for volume orders and reorders. The DTF Gang Sheet Online Builder can snap, warn on low-res art, and optimize gaps to save inches.

Consumables that match the template

Faster layouts deserve fast presses. Pair hot-peel media like DTF Film Rolls (Hot Peel) with a reliable adhesive such as Premium DTF Hot Melt Powder for cleaner edges and durable washes.

Preflight checklist (print this)

• Artboard set to final sheet size (22×24, 22×60, or custom).
• All raster art at 300 ppi; vectors outlined; strokes expanded.
• Bleed added where needed (1–2 mm); gutters at 2–4 mm.
• Transparent background; no stray white boxes.
• Safe zone of 6 mm around the perimeter honored.
• File named with client/SKU and version; layers grouped logically.

Export, Save & Preflight: Getting to a Flawless Press

Once your template is set, exporting clean files—and loading them into your RIP at true size—makes the difference between razor-sharp transfers and frustrating reprints. Use the following rules to “lock in” accuracy.

Recommended export formats (by workflow)

• PNG (transparent, 300 ppi): Most universal and RIP-friendly for DTF; preserves edges and soft transparency.
• PDF (vector-heavy kits): Embed fonts (or outline) and flatten effects. Verify scaling in the RIP.
• TIFF (production pipelines): LZW compression, transparency maintained; great for large 22×60 sheets.

Transparency & background handling

• Never export with a white background unless it’s part of the design.
• Check against a checkerboard preview before export to catch hidden boxes.
• Avoid stray pixels around edges; expand selection by 1 px and feather 0 to clean.

Color management that won’t bite you later

• Work in sRGB: Embed profile on export for predictable conversion in the RIP.
• Rich blacks: Use true RGB black (0,0,0). Let the RIP manage underbase and ink limits.
• Neons & brights: Simulate in RGB; proof on calibrated display; avoid last-minute saturation spikes.

RIP import safeguards (true-size, true-quality)

• Disable “scale to fit.” Import at 100% and confirm dimensions match the template.
• Check effective ppi: 300 ppi at size. If lower, replace the asset—don’t upscale in RIP.
• Group by cut bands (every 3–4 inches) to simplify trimming after cure.

Powdering & curing: make your gutters do the work

Those 2–4 mm gutters are not just for cutting—they prevent powder bridges that can create halos. Keep powder distribution even and excess tapped off before cure. Use a consistent tunnel or oven profile; log time/temperature per film/powder brand.

Press settings & peel strategy (for hot-peel speed)

• Temp: 285–310°F (140–155°C)
• Pressure: Medium–firm, even across the platen
• Press time: 10–15 s initial; optional 5–8 s post-press with a finishing sheet

Using hot-peel media such as DTF Film Rolls (Hot Peel) can reduce cooling delays and boost throughput on large batches.

Troubleshooting (template-led fixes)

• Silvering/halo: Increase bleed by 1–2 mm; verify powder isn’t bridging gutters.
• Lifting micro-text: Raise pressure slightly; increase dwell by 1–2 s; ensure minimum 0.5 pt line weights.
• Muted colors: Check ink limits in RIP; confirm sRGB workflow; ensure film matches your ink set.

Maintenance matters (protect the template ROI)

Clogged nozzles make beautiful templates print poorly. Keep supplies on hand for routine care: DTF Cleaning Solution for daily/weekly maintenance and DTF Strong Cleaning Solution for stubborn clogs. Consistent maintenance preserves fine details and reduces waste.

From template to order: your two fastest paths

• I need a guided layout: Use the DTF Gang Sheet Online Builder to arrange, snap, and preview bleed, then checkout.
• I already have a finished file: Send it through DTF Gang Sheet Upload for quick validation and ordering.

For simple, non-ganged orders, route customers to DTF Transfers by Size; for large runs, consider switching to roll-based media with hot-peel rolls to maintain speed and uniformity.

Quick reference: the “perfect template” specs

• Artboard: 22×24 or 22×60 (safe zone 6 mm), transparent background.
• Bleed 1–2 mm where needed; gutters 2–4 mm between designs.
• 300 ppi raster, outlined vectors, sRGB embedded.
• Min line 0.5 pt; min text 8–10 pt depending on garment color.
• Export PNG/TIFF (transparent) or PDF (outlined), scale 100% in RIP.

Final CTA: build once, reuse forever

Lock these specs into reusable master files so every job starts from a proven baseline. Create separate variants for 22×24 and 22×60, then duplicate per client. When you’re ready, arrange and order via the DTF Gang Sheet Online Builder or upload your finished sheet through DTF Gang Sheet Upload. With the right template, every square inch turns into predictable, profitable transfers—again and again.
